    Air consumption calculation dont seem correct (Nautic & Nautic S)

    Scheduled Pinned Locked Moved Nautic
    5 Posts 1 Posters 41 Views 2 Watching
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • N Offline
      Nandodiver Bronze Member
      last edited by

      The following air consumption is not making sense on the Nautic S, the Nautic might be correct.

      Nautic S & Nautic the have the same tank configuration (12L)

      Tank 12 L x 197 bar = 2364 bar

      start 197 Bar
      end 43 Bar
      154 Bar x 12L =1848
      2.70 ATM x 44 minutes = 118

      1848L / 118 =15,6L minute

      FORMULA ((Pi-Pf) x Vol.) / (Avg Atm x Time )


      1 Reply Last reply Reply Quote 0
      • N Offline
        Nandodiver Bronze Member
        last edited by

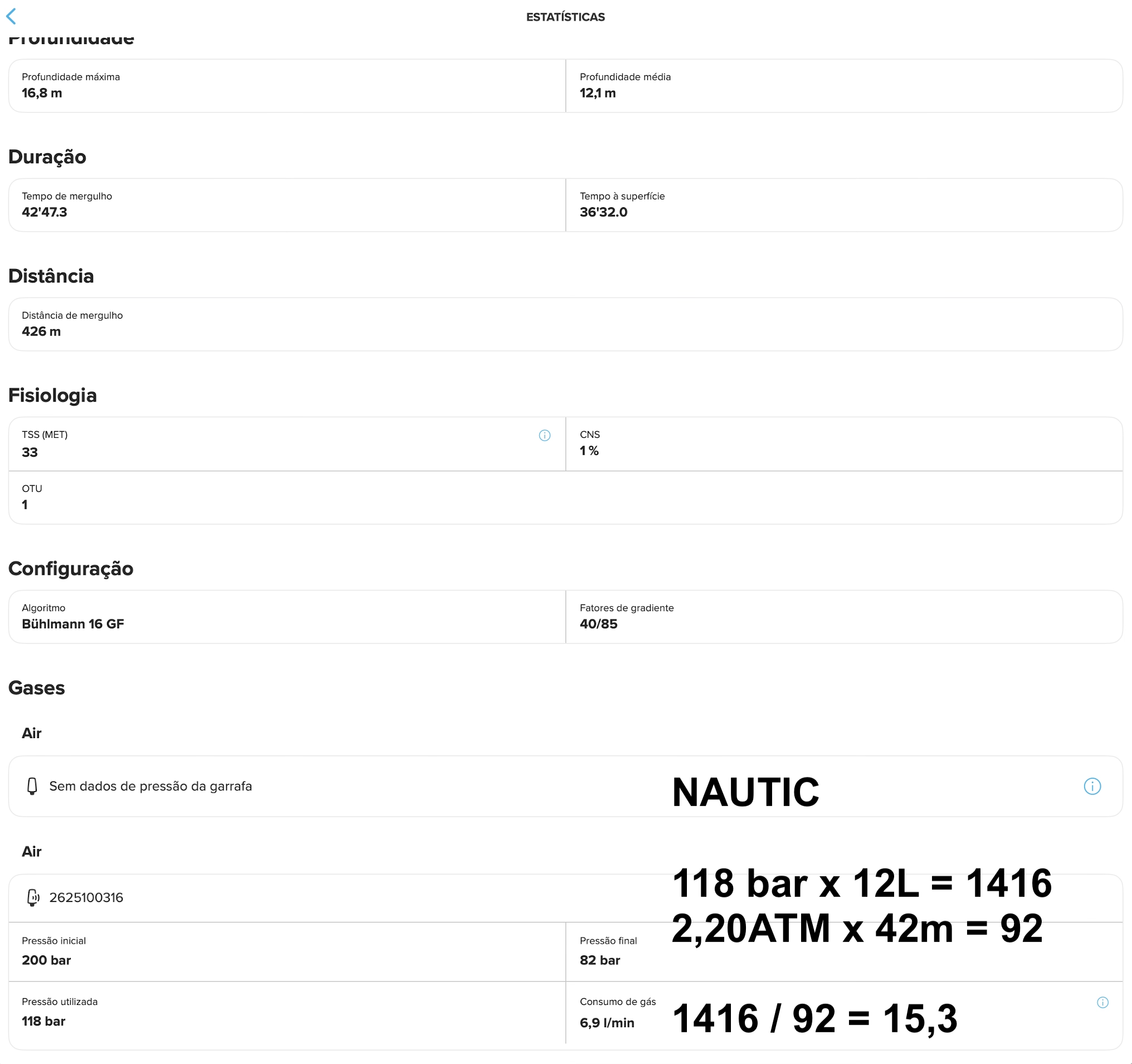

        Nautic

        Configuration Multiple gases
        12L + 5.7L

        Note: 5,7L tank has no transmitter and was not used


        1 Reply Last reply Reply Quote 0
        • N Offline
          Nandodiver Bronze Member
          last edited by

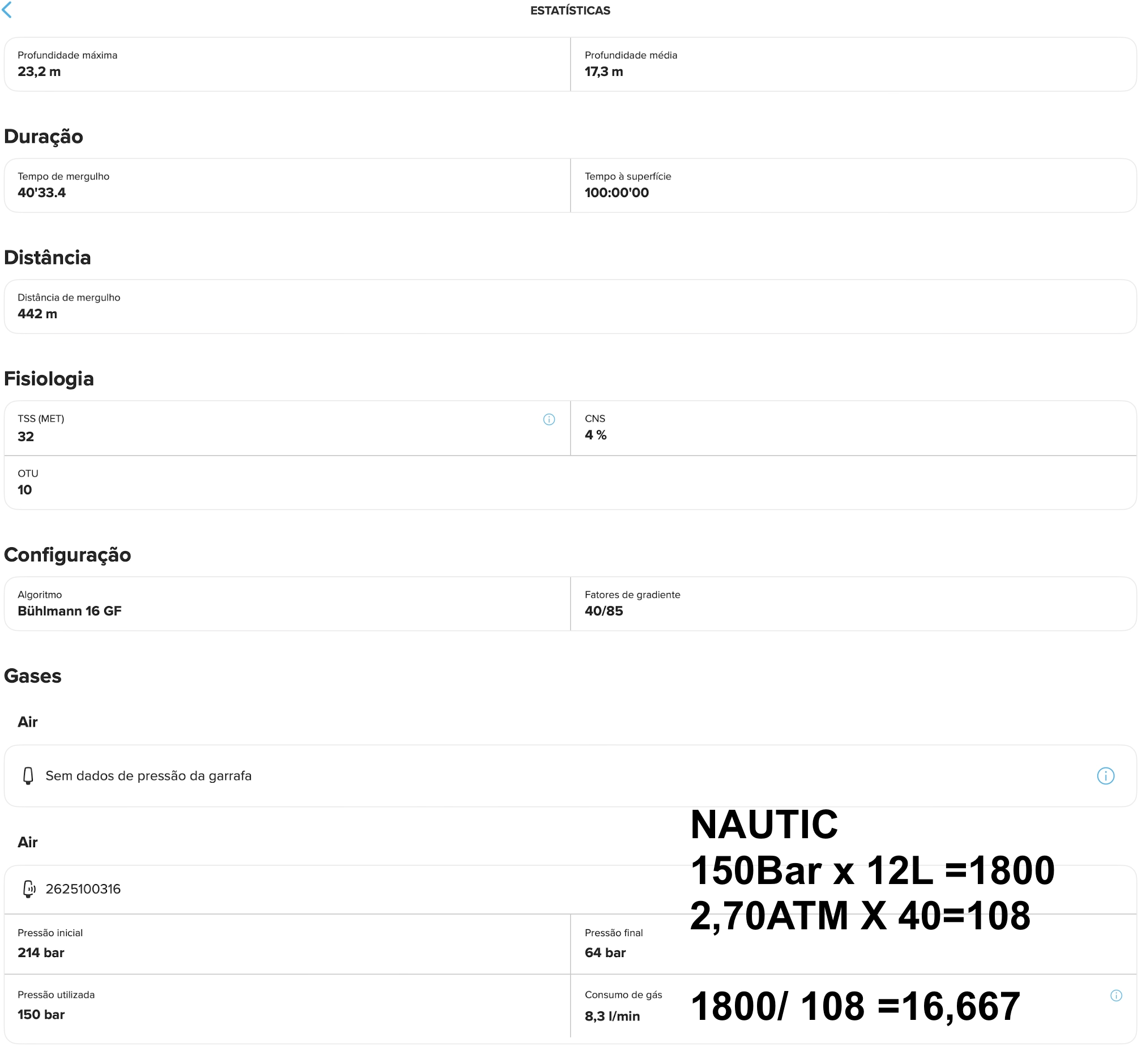

          Nautic

          Configuration Multiple gases
          12L + 5.7L

          Note: 5,7L tank has no transmitter and was not used


          1 Reply Last reply Reply Quote 0
          • N Offline
            Nandodiver Bronze Member
            last edited by Nandodiver

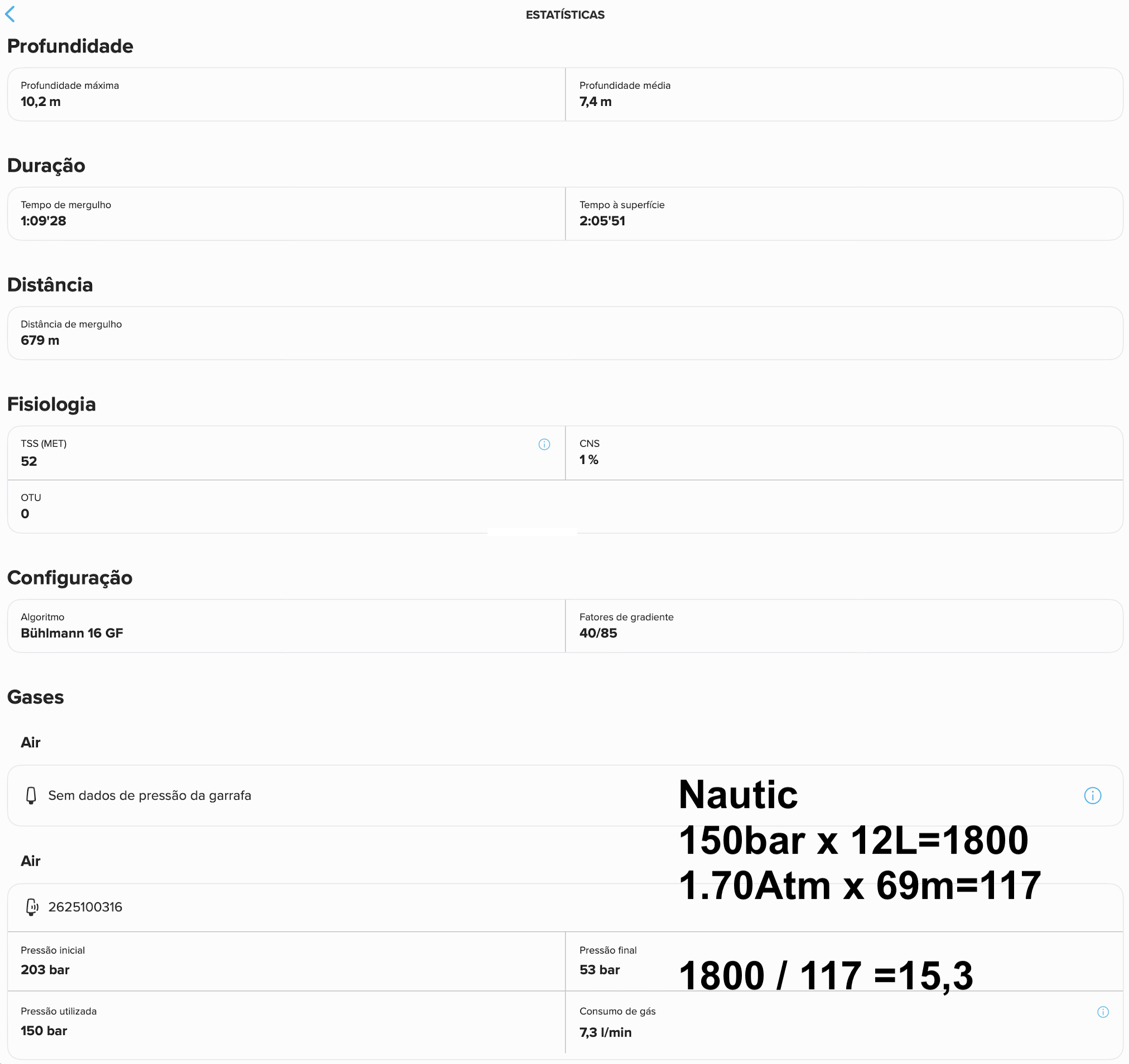

            Nautic

            Configuration Multiple gases
            12L + 5.7L

            Note: 5,7L tank has no transmitter and was not used during dive


            N 1 Reply Last reply Reply Quote 0
            • N Offline
              Nandodiver Bronze Member @Nandodiver
              last edited by

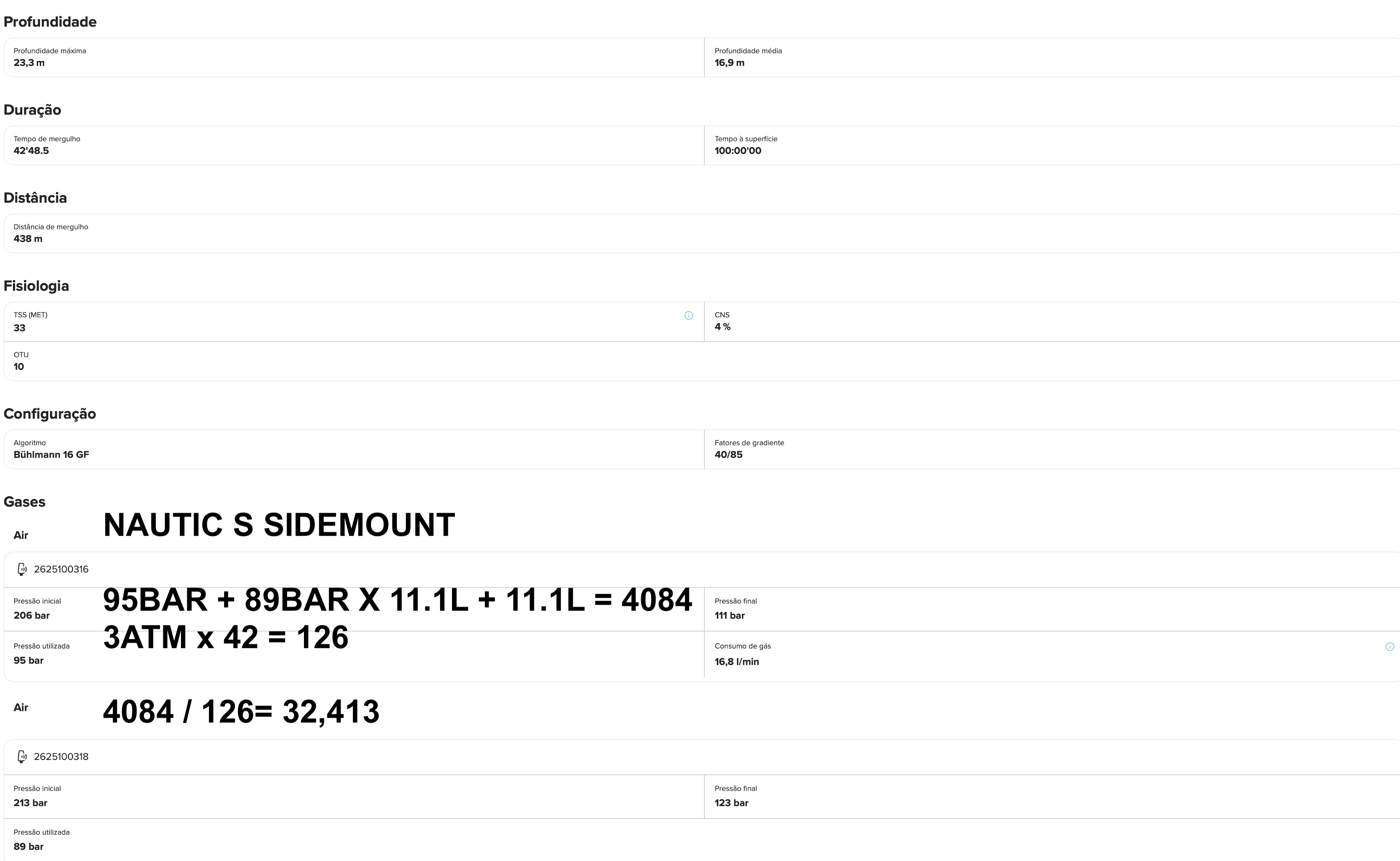

              Sidemount

              2x 11.1 L is also incorrect


              1 Reply Last reply Reply Quote 0
