[Question] No stupid questions - ask anything here

surfboomerang

@SuuntoPartnerTeam said in [Question] No stupid questions - ask anything here:

The uiViewSet might be something worth looking at

Thanks for the hint! This worked for my case.

hitriy

Awesome, works fine for me. Worth buying new watches then!

Ecki D.

Connect watch to macbook - VSCode

Should this work?

I have a older (rather old macbook running monterey. I couldn’t connect the watch to deploy my app on it.
Maybe it failed cause the watch hasn’t been properly disconnected from the phone see my other thread over here:

https://forum.suunto.com/post/187290

Unpaired8373

Does the watches JS-runtime support WASM by any chance?

Tomas5

Hello, can anyone help, I am trying to display Graph for HearthRate.

I am using this code for displaying graph, it is taken from one of examples just modified input path for current hearth rate:

<graph style="position:absolute;
              left:0px; top:0px; width:100%; height:100%;
              box-sizing: border-box;
              padding-right:90px; padding-top:60px; padding-bottom:60px;
              font-size:21px;"
       valueFormat="HeartRate_Fourdigits"
       type="line"
       grid="three lines"
       inputType="subscribe"
       input="/Activity/Move/-1/HeartRate/Current"
       min="0.6666666667"
       max="3"
       slack="0.1"
/>

and it works fine in simulator and I see this:

Snímka obrazovky 2026-03-20 210235.png

but when I upload app to watch (Suunto 5 or Race 2), than there is no graph line for Heart Rate:

ook

guys I need help, anyone know how to use the crown/middle button to scroll to the next ui?

Tomas5

@ook i would try “onEvent(input, output, eventId)” and display value of eventId on screen and than see if crown produce some events.

ook

@Tomas5 thanks Tomas I tried your method, it just return 0 to me, but i find out if ur ui is big enough it will able to scroll down,dont have to do anything.

Thibault B.

Hello,

What I want to do is quite simple but I do lack experience with JS, and it has been a long time since I developed in HTML.

I would appreciate your help :). I want to override down button press to make a lap type 24, but only if activity is ongoing. If it is paused I want the default behavior (stop activity).

In my html:

<userInput>
      <pushButton name="down" onClick="$.put('/Zapp/{zapp_index}/Event', 123, null, 'int32');" />
</userInput>

In my js:

function onEvent(input, output, eventId) {
  if (eventId == 123) {
    // Down button was pressed
    $.put('Activity/Trigger', 24);
  }
}

I was thinking of conditioning the HTML onClick but do not really know how to access necessary variables, etc. I have tried a few things but I am lost.

Unpaired8373

@Thibault-B. There is an example in the examples collection. Essentially have a global variable that is set in the start-handler and unset in the stop-handler and then handle the condition in you event

Thibault B.

@Unpaired8373 Not sure to get what you mean.

function onEvent(input, output, eventId) {
  if (eventId == 123 && output.isPaused == 0) {
    // Down button was pressed
    $.put('Activity/Trigger', 24);
  }
}

It is not triggering the lap but it is not doing anything else and I wanted to default to initial behavior (so I didn’t want an explicit call to stop, which seems anyway not available?).

Thibault B.

I think the issue is that I override the onClick action, so I should keep it empty if in pause. But I do not know how to do it.

surfboomerang

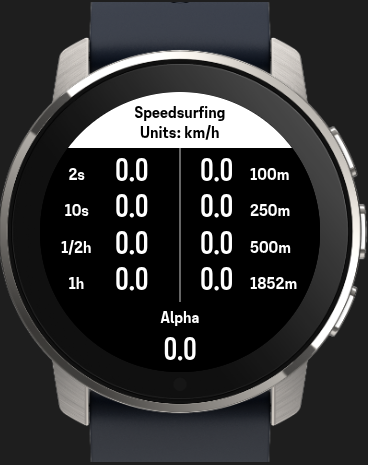

I’m working on an app for speedsurfers :

I struggle a little bit with the Alpha category.
According to the gps-speedsurfing rules the Alpha category is the speed over 500m, including a gybe (180 degree turn), and the start and endpoint needs to be within 50m of eachother.

To determine if there was a gybe, I thought about recording the direction for each second, but I noticed that isn’t available as parameter.
So the only other option I see is derive the direction from the coordinates, but that includes some calculations.

Any other ideas?

Unpaired8373

Is it expected that even an example app crashes the watch with a Syntax Error ?

After having my own app crash - and almost brick the watch or at least having it perform a fault recovery for a couple of minutes - I thought I reduce the app to a bare minimum and work from there but even that crashes the watch. I then copied the Dynamic Icons example but still get the crash log below:

#2670816 22.03.2026 18:43:43 : ERR UI_FRAMEWORK : JS:0x8258be29:SyntaxError: 5
#2670817 22.03.2026 18:43:43 : ERR APPLICATION : Thread state: name:ui
#2670818 22.03.2026 18:43:43 : ERR APPLICATION : CtxDog n:ui s:0 pc:0 lr:0
#2670819 22.03.2026 18:43:43 : ERR APPLICATION : CtxDog n:UI s:1 pc:78e9c lr:81ab1
#2670820 22.03.2026 18:43:43 : ERR APPLICATION : CtxDog n:ID s:1 pc:9b6d6 lr:84a15
#2670821 22.03.2026 18:43:43 : ERR APPLICATION : CtxDog n:BL s:2 pc:6c324 lr:6c15b
#2670822 22.03.2026 18:43:43 : ERR APPLICATION : CtxDog n:nV s:2 pc:6c324 lr:6c15b
#2670823 22.03.2026 18:43:43 : ERR APPLICATION : CtxDog n:Nt s:2 pc:6c324 lr:6c15b
#2670824 22.03.2026 18:43:43 : ERR APPLICATION : CtxDog n:WI s:2 pc:6c324 lr:6c15b
#2670825 22.03.2026 18:43:43 : ERR APPLICATION : CtxDog n:lo s:2 pc:84020 lr:84051
#2670826 22.03.2026 18:43:43 : ERR APPLICATION : CtxDog n:Po s:2 pc:6c324 lr:6c15b
#2670827 22.03.2026 18:43:43 : ERR APPLICATION : CtxDog n:WB s:2 pc:9b6d6 lr:84a5b
#2670828 22.03.2026 18:43:43 : ERR APPLICATION : CtxDog n:Ap s:2 pc:9b6d6 lr:84a5b
#2670829 22.03.2026 18:43:43 : ERR APPLICATION : CtxDog n:me s:2 pc:9b6d6 lr:84a5b
#2670830 22.03.2026 18:43:43 : ERR APPLICATION : CtxDog n:Tm s:2 pc:b6aca lr:84a15
#2670831 22.03.2026 18:43:43 : ERR APPLICATION : CtxDog n:Se s:2 pc:6c324 lr:6c15b
#2670832 22.03.2026 18:43:43 : ERR APPLICATION : CtxDog n:hc s:2 pc:6c324 lr:6c051
#2670833 22.03.2026 18:43:43 : ERR APPLICATION : CtxDog n:DS s:2 pc:6c324 lr:6c051
#2670834 22.03.2026 18:43:43 : ERR APPLICATION : CtxDog n:us s:2 pc:6c320 lr:6c051
#2670835 22.03.2026 18:43:43 : TRC UI_FRAMEWORK : wuiDump Assert peFunctionCombiner.cpp:302
#2670836 22.03.2026 18:43:43 : EVT MAPS : Tile sz=29840, x17435, y11374, z15
#2670837 22.03.2026 18:43:43 : TRC MAPS : Req[0] result: Code=OK
#2670838 22.03.2026 18:43:43 : TRC MAPS : Req[0] handle: clientID=1, handle=1153598804039951724, r
#2670839 22.03.2026 18:43:43 : EVT TRAININGLAB : TLab: Input source 0 timeout
#2670840 22.03.2026 18:43:43 : EVT TRAININGLAB : TLab: Active input source 3
#2670841 22.03.2026 18:43:45 : EVT EXT_FLASH : ExtFID 0xc2,0x25,0x39
#2670842 22.03.2026 18:43:45 : ERR FAULT : A302:duktapeFunctionCombiner.cpp
#2670843 22.03.2026 18:43:45 : EVT BOOTLOOP : Faultcom c:fa017c01 ts:1774201322 n:1774201425

As a side-note: I really like the naming of the internal code files
